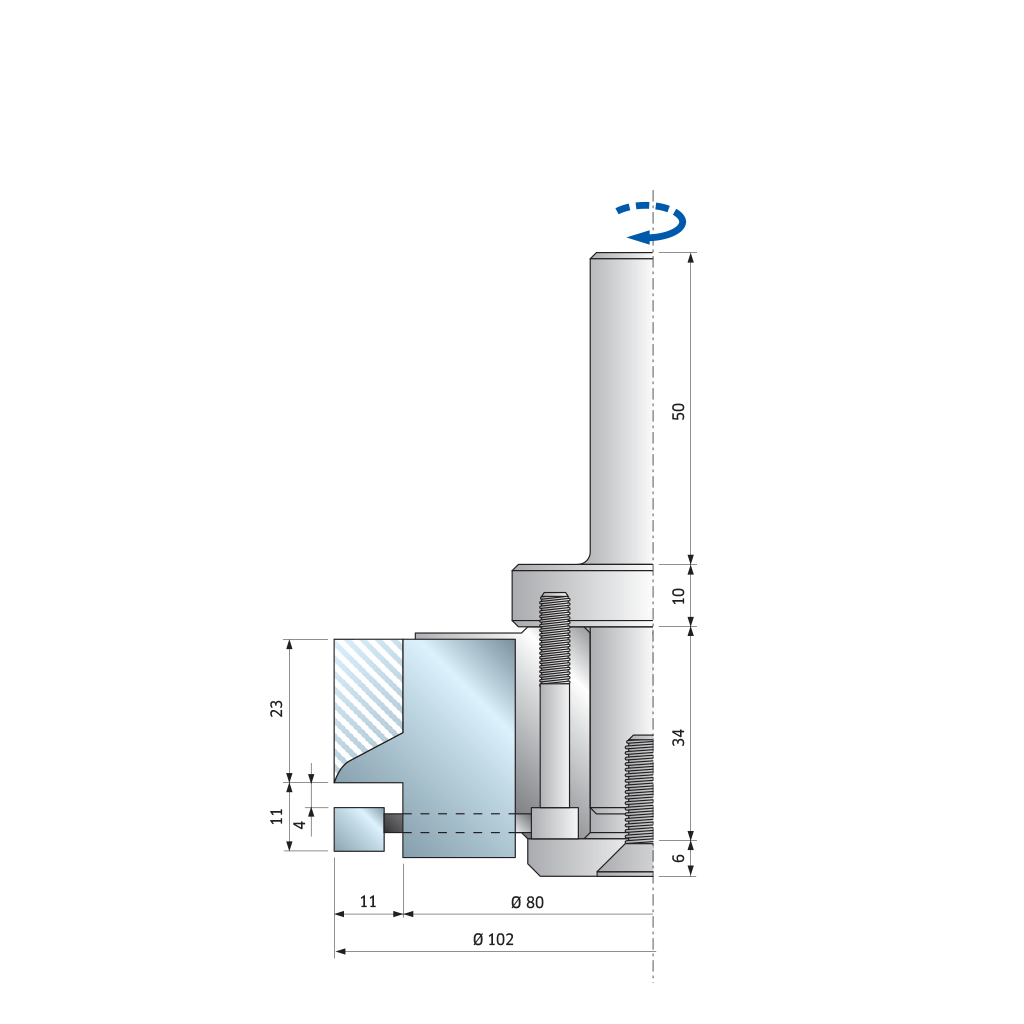

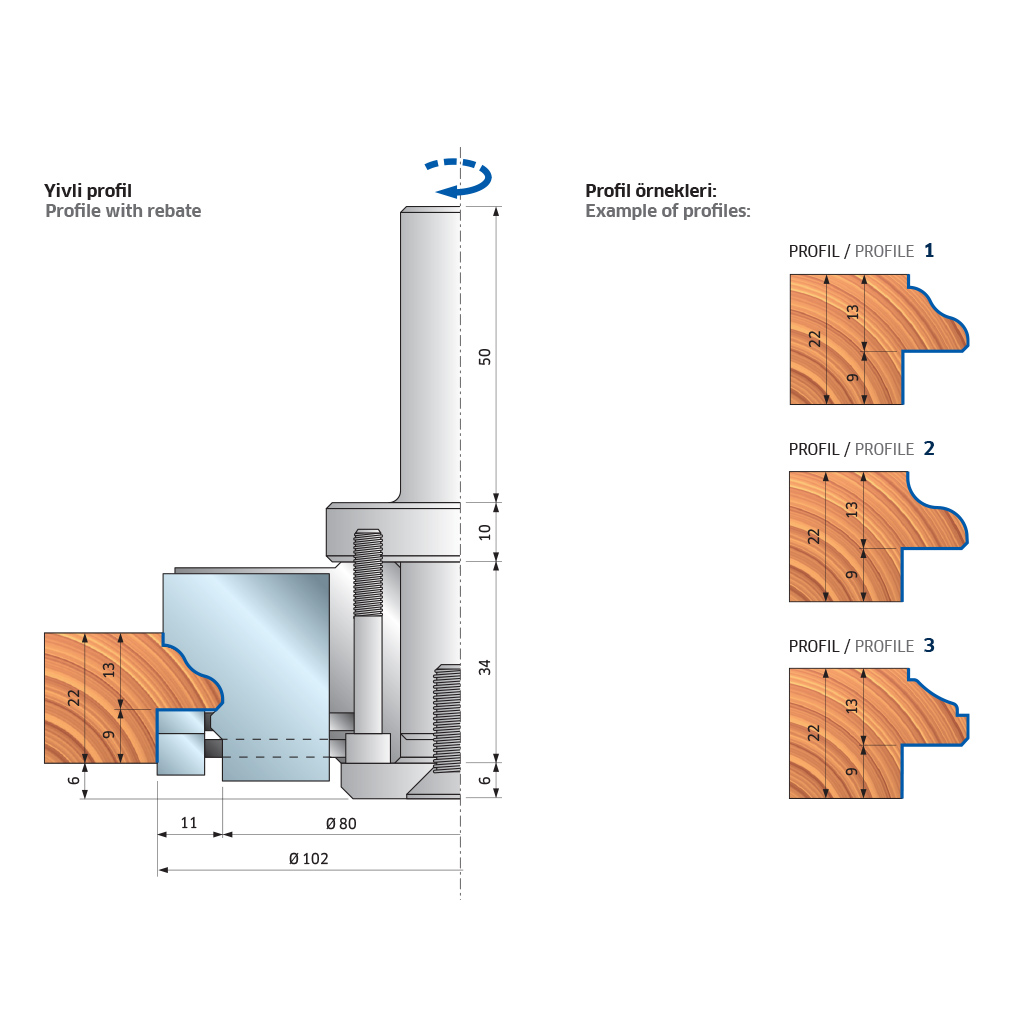

For profiling soft and hard solid woods, exotic woods, chipboard and MDF on normal and CNC overhead routing machines. Code PCN310 includes the router cutter body, 2 profiled knives, the chuck, screws and servicing keys. For each router cutter, minimum 6 profiled knives must be ordered.
Order example: n. 1 PCN310 and n. 4 CK02 DC3 (with same profile as knives fitted on router cutter).

For each order, it is necessary to include a drawing and/or wood sample of the profile to be obtained.

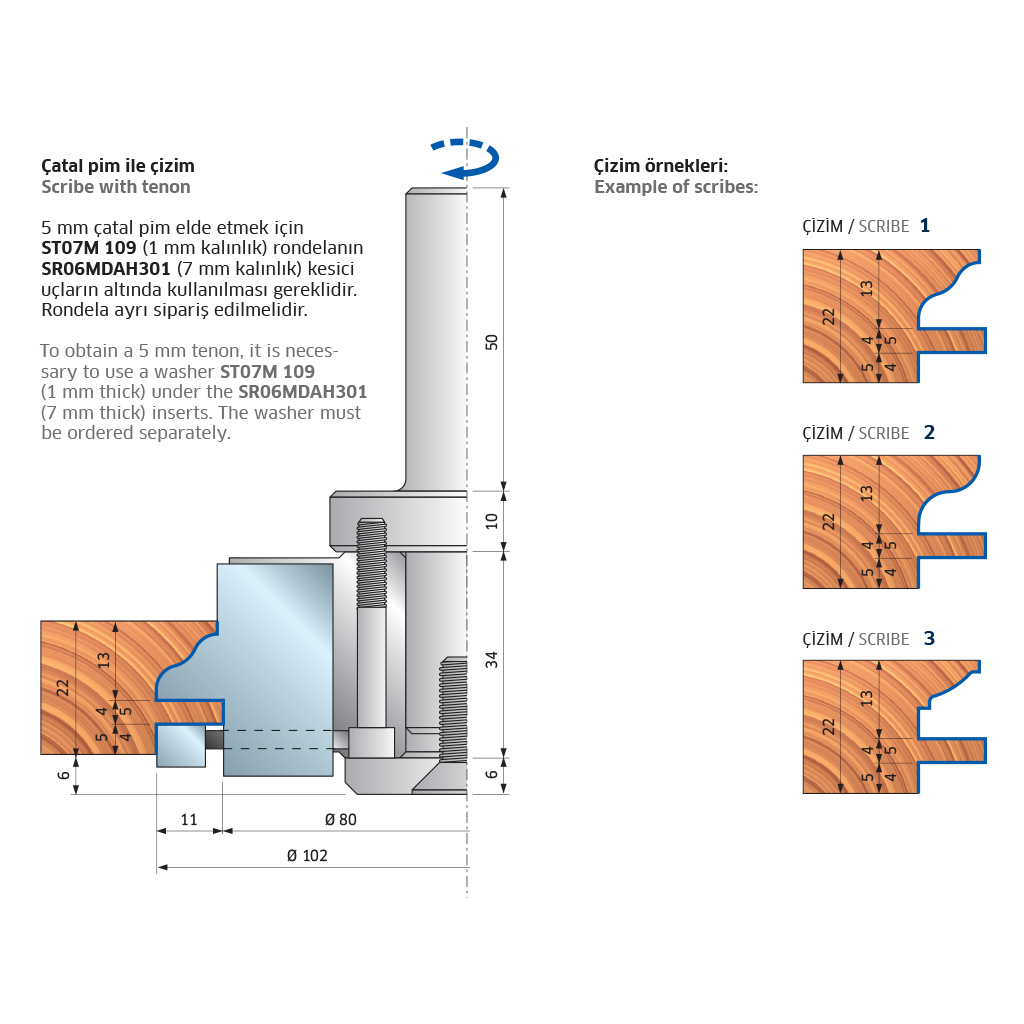

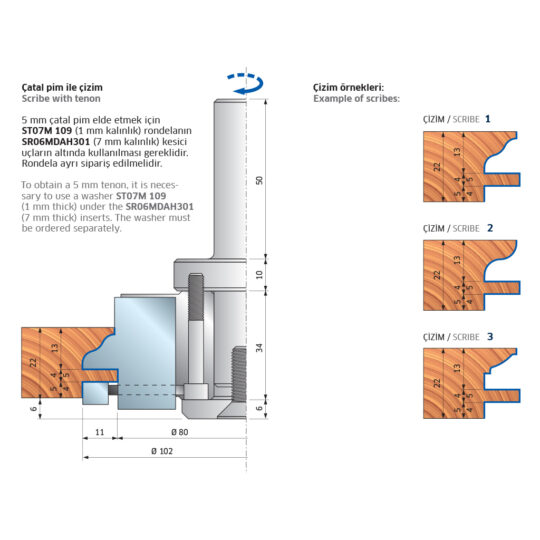

To obtain the 5 mm tenon, it is necessary insert to a washer (1 mm thick) under the SR06MDAH301 (7 mm thick) inserts. The washer ST07M 109 must be ordered separately.

Please note: the code is only guideline and is only applicable while order is being processed
